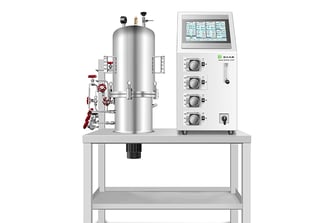

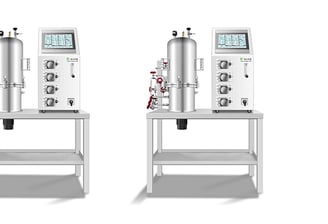

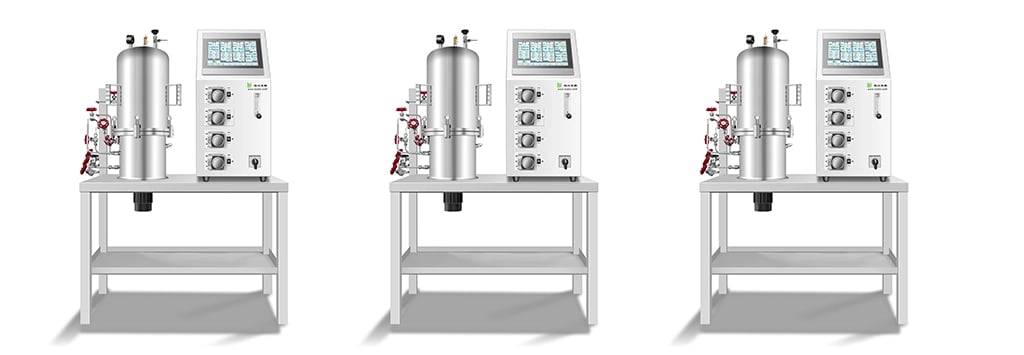

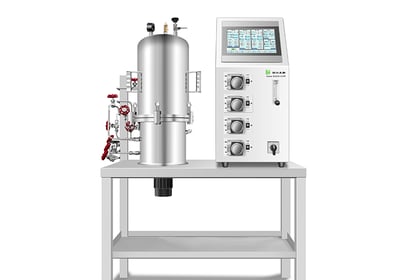

In-Place Sterilized Glass Fermenter
In-place sterilized glass fermenter ensures sterile conditions for optimal microbial cultivation, ideal for biopharmaceutical and biotechnological applications.
In-Place Sterilized Glass Fermenter
Make Fermentation More Efficient with Integrated Process Equipment
Shanghai Wurtz Biotechnology Co., Ltd. offers customized fermenters tailored to various needs. Based on the growth characteristics and requirements of plant cells, animal cells, and microorganisms, we provide different configurations. The fermenter body is made of transparent glass, allowing for clear observation of the internal structure and fermentation process, making it ideal for teaching demonstrations. It can be integrated with laboratory-scale fermenters for pilot-scale fermentation, and we offer technical support for scale-up. Additionally, it can be connected to post-fermentation processing equipment, helping customers establish a complete fermentation production line—from strain cultivation to fermentation, and from fermentation to post-processing.
Product Features:
Inner and Outer Mirror Polishing Treatment: Minimizes the risk of contamination.
Optional Standard and Non-Standard Stirring Blades: Designed to fit fermenter bodies with various diameter-to-height ratios, catering to different microbial fermentation processes.
Sanitary 316L Stainless Steel Bottom Ring Gas Distributor: Professionally engineered for uniform bubble distribution and clog-free pores.
Fermentation-Specific Baffle Plate: Ensures excellent convection within the tank during stirring, providing both radial and axial flow for high mass transfer efficiency.
Mechanical Pressing Type Defoaming Blade (Primary): Rapidly and effectively breaks down foam, equipped with a defoaming electrode for automatic foam detection and proportional addition of defoamer.
Servo Motor: Compact and responsive, with no startup delay.
Parameter Settings for Temperature, pH, Dissolved Oxygen, Speed, Defoaming, and Feeding.
PID Automatic Control Mode: Provides precise control of temperature and pH, reducing fluctuations.
Sequential Control of Temperature, pH, DO, Speed, Defoaming, and Feeding.
Multiple Feed Control Strategies: Offers pH-linked feeding, DO-linked feeding, exponential feeding, linear feeding, and segmented feeding modes.
Control System Connectable to Upper-Level Computer: Allows uploading of fermentation process parameters for monitoring, analysis, and comparison.
Data Analysis Capability: Can store and review at least 1000 batches of fermentation data and historical records.
Technical Specifications
Range Specifications
The BIOTECH-SS solid-state fermenters are used for solid-state fermentation processes, providing an ideal environment to support microbial growth and metabolism, typically used for enzyme production and biomass conversion. Equipped with specialized facilities inside the tank to optimize gas flow and humidity control, ensuring efficient production and stable quality.
Technical Specifications
Accuracy
Power Supply
220V/50HZ (for capacities below 50L); 380V/50HZ (for motors above 1.5KW and capacities above 100L)
Volume
Material
Temperature
Control mode
Aeration method
Aeration flow rate
5L/7L/10L
316L stainless steel tank and 304 stainless steel jacket
Sterilization Method
Online steam sterilization
0-150℃
PID intelligent fuzzy control with high control accuracy and minimal fluctuation.
±0.1℃
1. Customizable aspect ratio as needed. 2. Display range. 3. Control range.
Stirring speed
0~30rpm/min
Cooling water temperature
+5-65℃
±0.2℃
Tank Pressure
0-0.3Mpa (pressure gauge indication, manually adjustable)
Humidity
30%-100%
Water Replenishment Time
On for 0-99 minutes or seconds; off for 0-99 minutes or seconds
Bottom tank wall with 200-mesh stainless steel filter for air intake
0~1WM
Exhaust gas treatment
Exhaust gas filter
Pump/material
Fixed-speed peristaltic pump for continuous feeding
±0.2℃
Biological fermentation supporting software
The BIOTECH series can control or collect 14 direct parameters including pH, DO, tank pressure, temperature, speed, air flow rate, exhaust O2, exhaust CO2, feed weight, and fermentation liquid volume. It can also calculate indirect parameters and accurately display the material balance and changes within the fermentation process. This allows users to analyze the correlations within the fermentation process and simultaneously display any number of curves from different fermentation batches for comparative analysis. This helps users determine suitable control points to achieve the goal of scaling up from pilot to production. Additionally, it supports standard communication protocols, enabling direct communication and feedback control with fully automated online sampling analyzers or biochemical analyzers to achieve online control of substrate concentrations such as glucose.
Software User Guide
This fermentation control software is an industrial process control system software with the following outstanding features: comprehensive functionality, ease of operation, good visibility, and strong maintainability. The main functions include:
- Real-time monitoring of various fermentation parameters and stable control of the fermentation process.
- Convenient batch sampling, curve, and data analysis functions.
- Real-time storage of fermentation sampling values, presentation of fermentation curves, and data reports.
- A timely alarm system with flexible alarm threshold settings.
- Query of all alarm information within a specified time period.
- Open internal control parameter settings.
- Sequential control and interlocking control of multiple measurement and control parameters.
Software Introduction
